HSDL-3610

Data Compliant

HSDL-3610 Features

* Fully Compliant to IrDA 1.0 Physical Layer Specifications - 9.6 kb/s to 115.2 kb/s operation

* Typical Link Distance > 1.5 m

* Compatible with HP-SIR and TV Remote

* IEC825-Class 1 Eye Safe

* Low Power Operation Range - 2.7 V to 5.25 V

* Small Module

HSDL-3610 General Description

The HSDL-3610 is a low-profile infrared transceiver module that provides interface between logic and IR signals for through-air, serial, half-duplex IR data link. The module is compliant to IrDA Data Physical Layer Specifications 1.0 and IEC825Class 1 Eye Safe. GND (3) CX1 GND (7) CX2 VCC (1) AGND (.

HSDL-3610 Datasheet (449.83 KB)

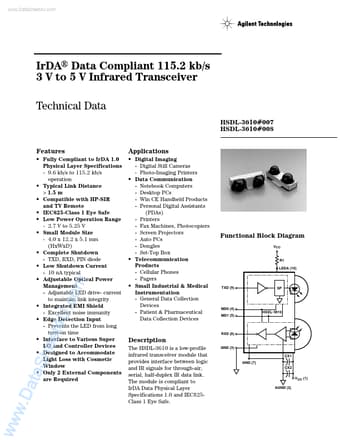

Preview of HSDL-3610 PDF

Datasheet Details

Part number:

HSDL-3610

Manufacturer:

Agilent Technologies

File Size:

449.83 KB

Description:

Data compliant.
