HSDL-3003

IrDA Data Compliant Low Power

HSDL-3003 Features

* Fully compliant to IrDA® Physical Layer Specification 1.4 low power from 9.6 kbit/s to 115.2 kbit/s (SIR)

* Excellent nose-to-nose operation www.DataSheet4U.com

* Link distance up to 50 cm typically

* Complete shutdown for TxD_IrDA, RxD_IrDA, and PIN diode

HSDL-3003 General Description

The HSDL-3003 is a small form factor enhanced infrared (IR) transceiver module that provides the capability of (1) interface between logic and IR signals for through-air, serial, half-duplex IR data link, and (2) IR remote control transmission operating at the optimum 940 nm wavelength for universal.

HSDL-3003 Datasheet (335.55 KB)

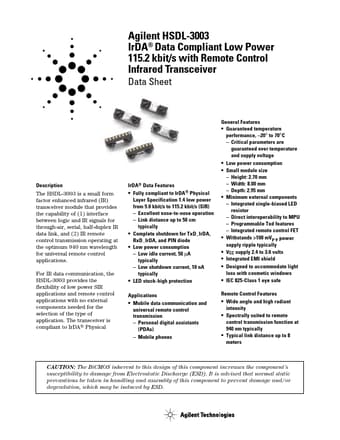

Preview of HSDL-3003 PDF

Datasheet Details

Part number:

HSDL-3003

Manufacturer:

Agilent

File Size:

335.55 KB

Description:

Irda data compliant low power.
