HSDL-3220

Data Compliant Low Power 4.0 Mbit/s Infrared Transceiver

HSDL-3220 Features

* Fully compliant to IrDA 1.4 physical layer low power specification from 9.6 kbit/s to 4.0 Mbit/s (FIR)

* Miniature package

* Height: 2.5 mm

* Width: 8.0 mm

* Depth: 3.0 mm

* Typical link distance > 50 cm

* Guaranteed temperature performance,

HSDL-3220 General Description

The HSDL-3220 is a new generation low profile high speed infrared transceiver module that provides interface between logic and IR signals for through-air, serial, half-duplex IR data-link. The module is fully compliant to IrDA Physical Layer specification version 1.4 low power from 9.6kbit/s to 4.0 .

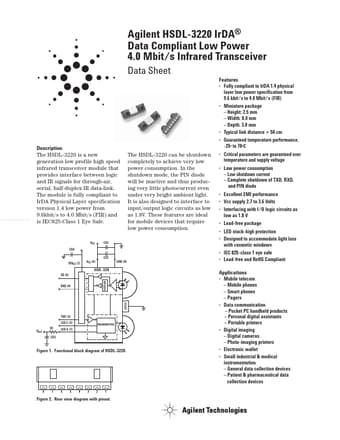

HSDL-3220 Datasheet (213.60 KB)

Preview of HSDL-3220 PDF

Datasheet Details

Part number:

HSDL-3220

Manufacturer:

Agilent

File Size:

213.60 KB

Description:

Data compliant low power 4.0 mbit/s infrared transceiver.
