HSDL-3600

Compliant 4Mb/s 3V Infrared Transceiver

HSDL-3600 Features

* Fully Compliant to IrDA 1.1 Physical Layer Specifications - 9.6 kb/s to 4 Mb/s operation

* Typical Link Distance > 1.5 m

* Compatible with HP-SIR and TV Remote

* IEC825-Class 1 Eye Safe

* Low Power Operation - 2.7 V to 3.6 V

* Small Module Size - 4.0

HSDL-3600 Datasheet (567.66 KB)

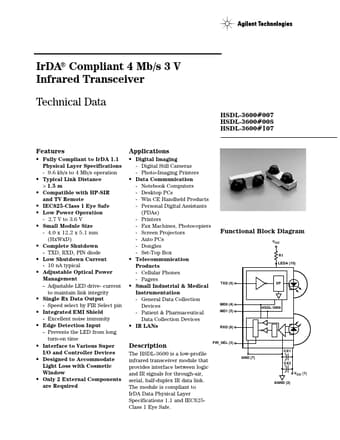

Preview of HSDL-3600 PDF

Datasheet Details

Part number:

HSDL-3600

Manufacturer:

Agilent

File Size:

567.66 KB

Description:

Compliant 4mb/s 3v infrared transceiver.
