HSMN-C120 - (HSMx-C120) Right Angle Chip LED

HSMN-C120 Description

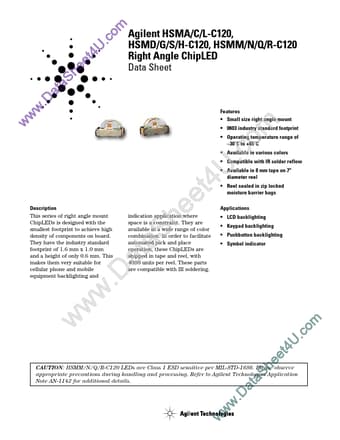

w w w .D a t a Sh t e e 4U .mAgilent HSMA/C/L-C120, o c Data Sheet HSMD/G/S/H-C120, HSMM/N/Q/R-C120 Right Angle ChipLED .
This series of right angle mount ChipLEDs is designed with the smallest footprint to achieve high density of components on board.

HSMN-C120 Features

* Small size right angle mount
* 0603 industry standard footprint
* Operating temperature range of
* 30˚C to +85˚C

HSMN-C120 Applications

* LCD backlighting
* Keypad backlighting
* Pushbutton backlighting
* Symbol indicator . c m o CAUTION : HSMM/N/Q/R-C120 LEDs are Class 1 ESD sensitive per MIL-STD-1686. Please observe appropriate precautions during handling and processing. Refer to Agilent Technolog
