HSMN-C110, HSMN-C191 - (HSMx-C110/170/190/191/150) SMT Chip LED

HSMN-C110 Description

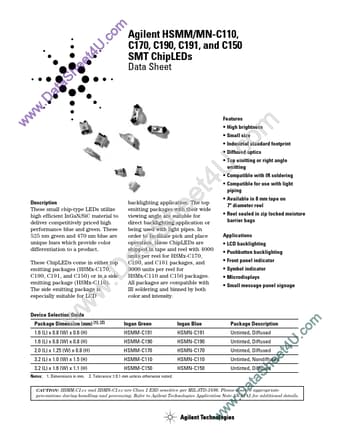

w w w .D a t a Sh t e e 4U .mAgilent HSMM/MN-C110, o c Data Sheet C170, C190, C191, and C150 SMT ChipLEDs .
These small chip-type LEDs utilize high efficient InGaN/SiC material to deliver competitively priced high performance blue and green.

HSMN-C110 Features

* High brightness
* Small size
* Industrial standard footprint
* Diffused optics
* Top emitting or right angle emitting
* Compatible with IR soldering
* Compatible for use with light piping
* Available in 8 mm tape on 7" diameter reel

HSMN-C110 Applications

* LCD backlighting
* Pushbutton backlighting
* Front panel indicator
* Symbol indicator
* Microdisplays
* Small message panel signage Ingan Green HSMM-C191 HSMM-C190 HSMM-C170 HSMM-C110 HSMM-C150 Ingan Blue HSMN-C191 HSMN-C190 HSMN-C170 HSMN-C110 HSM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSMN-C110, HSMN-C191. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSMN-C110, HSMN-C191
Manufacturer
Agilent Technologies
File Size
265.02 KB
Datasheet
HSMN-C191_AgilentTechnologies.pdf
Description
(HSMx-C110/170/190/191/150) SMT Chip LED
Note
This datasheet PDF includes multiple part numbers: HSMN-C110, HSMN-C191.
Please refer to the document for exact specifications by model.
