HSMY-C150

Surface Mount Chip LED

HSMY-C150 Features

* Small Size Industry Standard Footprint Compatible with IR Solder Diffused Optics Operating Temperature Range of -30°C to +85°C

* Right Angle Package Available

* Five Colors Available

* Available in 8 mm Tape on 7 in. (178 mm)

HSMY-C150 General Description

These chip LEDs are designed in an industry standard package for ease of handling and use. Five different LED colors are available in four compact, single color packages. The HSMx-C150 has the industry standard 3.2 x 1.6 mm footprint that is excellent for all around use. The HSMx-C170 has the widely.

HSMY-C150 Datasheet (213.65 KB)

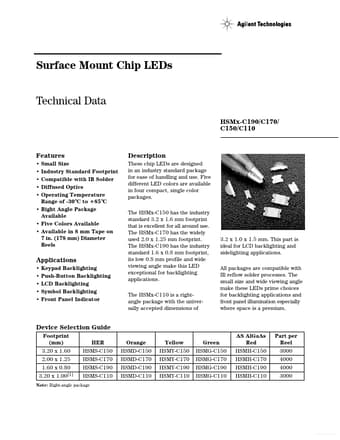

Preview of HSMY-C150 PDF

Datasheet Details

Part number:

HSMY-C150

Manufacturer:

Agilent Technologies

File Size:

213.65 KB

Description:

Surface mount chip led.
