HSMY-C170

Surface Mount Chip LED

HSMY-C170 Features

* Small Size Industry Standard Footprint Compatible with IR Solder Diffused Optics Operating Temperature Range of -30°C to +85°C

* Right Angle Package Available

* Five Colors Available

* Available in 8 mm Tape on 7 in. (178 mm)

HSMY-C170 General Description

These chip LEDs are designed in an industry standard package for ease of handling and use. Five different LED colors are available in four compact, single color packages. The HSMx-C150 has the industry standard 3.2 x 1.6 mm footprint that is excellent for all around use. The HSMx-C170 has the widely.

HSMY-C170 Datasheet (213.65 KB)

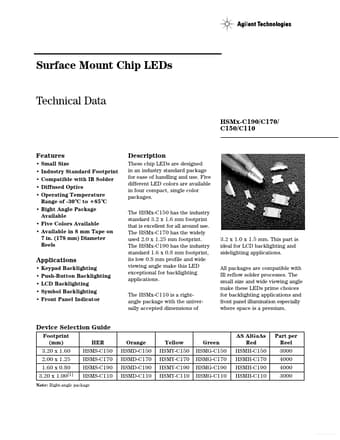

Preview of HSMY-C170 PDF

Datasheet Details

Part number:

HSMY-C170

Manufacturer:

Agilent Technologies

File Size:

213.65 KB

Description:

Surface mount chip led.
