SM4004 - RECTIFIER DIODES

This page provides the datasheet information for the SM4004, a member of the SM4001 RECTIFIER DIODES family.

Datasheet Summary

Description

The SM4001~SM4007 are available in DO-213AB Package

Features

  • Glass passivated device.
  • Ideal for surface mounted.

📥 Download Datasheet

Datasheet preview – SM4004

Datasheet Details

Part number SM4004
Manufacturer AiT Components
File Size 363.15 KB
Description RECTIFIER DIODES
Datasheet download datasheet SM4004 Datasheet
Additional preview pages of the SM4004 datasheet.

📁 Similar Datasheet

  • SM4004 - 1.0AMP. Surface Mount Glass Passivated Silicon Rectifiers (Kingtronics)
  • SM4004 - GENERAL PURPOSE SILICON RECTIFIER (Dc Components)
  • SM4004 - Surface Mount Rectifiers (HY)
  • SM4004 - 1.0 A Surface Mount Silicon Rectifier (SEP ELECTRONIC)
  • SM4004 - Standard Recovery SMD Rectifier Diodes (Diotec)
  • SM4004 - Surface Mount Standard Recovery Glass Passivated Rectifiers (Weitron Technology)
  • SM4004 - Standard silicon rectifier diodes (Semikron International)
  • SM4004 - Surface Mount Rectifiers (LGE)
  • SM4004 - SURFACE MOUNT GLASS PASSIVATED JUNCTION (EIC)
  • SM4004 - SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIERS (PACELEADER)
Other Datasheets by AiT Components

Full PDF Text Transcription

Click to expand full text

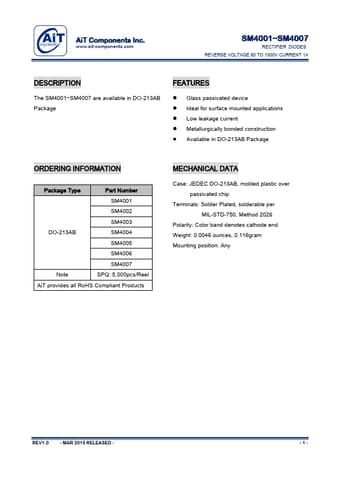

AiT Components Inc. www.ait-components.com SM4001~SM4007 RECTIFIER DIODES REVERSE VOLTAGE 50 TO 1000V CURRENT 1A DESCRIPTION The SM4001~SM4007 are available in DO-213AB Package FEATURES  Glass passivated device  Ideal for surface mounted applications  Low leakage current  Metallurgically bonded construction  Available in DO-213AB Package ORDERING INFORMATION Package Type Part Number SM4001 SM4002 SM4003 DO-213AB SM4004 SM4005 SM4006 SM4007 Note SPQ: 5,000pcs/Reel AiT provides all RoHS Compliant Products MECHANICAL DATA Case: JEDEC DO-213AB, molded plastic over passivated chip Terminals: Solder Plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Weight: 0.0046 ounces, 0.116gram Mounting position: Any REV1.
