SM4004M - Surface Mount General Purpose Rectifiers

This page provides the datasheet information for the SM4004M, a member of the SM4001M Surface Mount General Purpose Rectifiers family.

Datasheet Summary

Features

  • z Batch process design, excellent power dissipation offers better reverse leakage current and thermal resistance. z Low profile surface mounted.

📥 Download Datasheet

Datasheet preview – SM4004M

Datasheet Details

Part number SM4004M
Manufacturer SeCoS
File Size 53.55 KB
Description Surface Mount General Purpose Rectifiers
Datasheet download datasheet SM4004M Datasheet
Additional preview pages of the SM4004M datasheet.

📁 Similar Datasheet

  • SM4004 - RECTIFIER DIODES (AiT Components)
  • SM4004 - 1.0AMP. Surface Mount Glass Passivated Silicon Rectifiers (Kingtronics)
  • SM4004 - GENERAL PURPOSE SILICON RECTIFIER (Dc Components)
  • SM4004 - Surface Mount Rectifiers (HY)
  • SM4004 - 1.0 A Surface Mount Silicon Rectifier (SEP ELECTRONIC)
  • SM4004 - Standard Recovery SMD Rectifier Diodes (Diotec)
  • SM4004 - Surface Mount Standard Recovery Glass Passivated Rectifiers (Weitron Technology)
  • SM4004 - Standard silicon rectifier diodes (Semikron International)
  • SM4004 - Surface Mount Rectifiers (LGE)
  • SM4004 - SURFACE MOUNT GLASS PASSIVATED JUNCTION (EIC)
Other Datasheets by SeCoS
  • SM4004MH - Surface Mount General Purpose Rectifiers
  • SM4004B - Surface Mount Silicon Rectifiers
  • SM4004FL - 1.0 Amp Surface Mount Silicon Rectifiers
  • SM4004FLCR-C - 1.0 Amp Surface Mount Silicon Rectifiers
  • SM4004JD - Surface Mount Silicon Rectifier
  • SM4004JD-C - 1.0 Amp Surface Mount Silicon Rectifiers
  • SM4004WT-C - Surface Mount Silicon Rectifiers
  • SM4004WTCR-C - 1.0 Amp Surface Mount Silicon Rectifiers

Full PDF Text Transcription

Click to expand full text

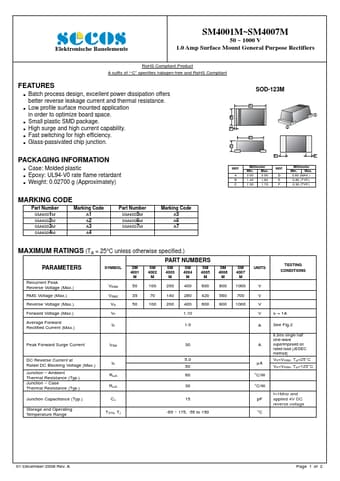

Elektronische Bauelemente SM4001M~SM4007M 50 ~ 1000 V 1.0 Amp Surface Mount General Purpose Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen-free and RoHS Compliant FEATURES z Batch process design, excellent power dissipation offers better reverse leakage current and thermal resistance. z Low profile surface mounted application in order to optimize board space. z Small plastic SMD package. z High surge and high current capability. z Fast switching for high efficiency. z Glass-passivated chip junction. PACKAGING INFORMATION z Case: Molded plastic z Epoxy: UL94-V0 rate flame retardant z Weight: 0.02700 g (Approximately) SOD-123M A B F D C E E REF. A B C Millimeter Min. Max. 3.50 3.90 1.40 1.80 1.30 1.70 REF. D E F Millimeter Min. Max. 3.60 (MAX.) 0.80 (TYP.
