SM4004B - Surface Mount Silicon Rectifiers

This page provides the datasheet information for the SM4004B, a member of the SM4001B Surface Mount Silicon Rectifiers family.

Datasheet Summary

Features

  • RoHS Compliant Product Ideal for surface mount.

📥 Download Datasheet

Datasheet preview – SM4004B

Datasheet Details

Part number SM4004B
Manufacturer SeCoS
File Size 185.70 KB
Description Surface Mount Silicon Rectifiers
Datasheet download datasheet SM4004B Datasheet
Additional preview pages of the SM4004B datasheet.

📁 Similar Datasheet

  • SM4004 - RECTIFIER DIODES (AiT Components)
  • SM4004 - 1.0AMP. Surface Mount Glass Passivated Silicon Rectifiers (Kingtronics)
  • SM4004 - GENERAL PURPOSE SILICON RECTIFIER (Dc Components)
  • SM4004 - Surface Mount Rectifiers (HY)
  • SM4004 - 1.0 A Surface Mount Silicon Rectifier (SEP ELECTRONIC)
  • SM4004 - Standard Recovery SMD Rectifier Diodes (Diotec)
  • SM4004 - Surface Mount Standard Recovery Glass Passivated Rectifiers (Weitron Technology)
  • SM4004 - Standard silicon rectifier diodes (Semikron International)
  • SM4004 - Surface Mount Rectifiers (LGE)
  • SM4004 - SURFACE MOUNT GLASS PASSIVATED JUNCTION (EIC)
Other Datasheets by SeCoS
  • SM4004FL - 1.0 Amp Surface Mount Silicon Rectifiers
  • SM4004FLCR-C - 1.0 Amp Surface Mount Silicon Rectifiers
  • SM4004JD - Surface Mount Silicon Rectifier
  • SM4004JD-C - 1.0 Amp Surface Mount Silicon Rectifiers
  • SM4004M - Surface Mount General Purpose Rectifiers
  • SM4004MH - Surface Mount General Purpose Rectifiers
  • SM4004WT-C - Surface Mount Silicon Rectifiers
  • SM4004WTCR-C - 1.0 Amp Surface Mount Silicon Rectifiers

Full PDF Text Transcription

Click to expand full text

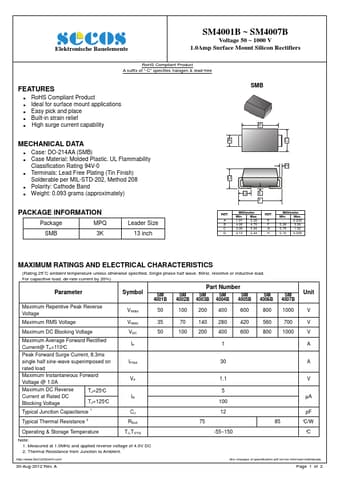

Elektronische Bauelemente SM4001B ~ SM4007B Voltage 50 ~ 1000 V 1.0Amp Surface Mount Silicon Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES RoHS Compliant Product Ideal for surface mount applications Easy pick and place Built-in strain relief High surge current capability SMB B MECHANICAL DATA Case: DO-214AA (SMB) Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Terminals: Lead Free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Weight: 0.093 grams (approximately) PACKAGE INFORMATION Package MPQ SMB 3K Leader Size 13 inch AC H D GE F REF. A B C D Millimeter Min. Max. 1.91 2.20 4.06 4.70 3.30 3.94 2.13 2.44 REF. E F G H Millimeter Min. Max. - 0.203 5.08 5.59 0.76 1.52 0.
