SM4004FLCR-C - 1.0 Amp Surface Mount Silicon Rectifiers

This page provides the datasheet information for the SM4004FLCR-C, a member of the SM4001FLCR-C 1.0 Amp Surface Mount Silicon Rectifiers family.

Datasheet Summary

Features

  • Low forward surge current.
  • Ideal for surface mounted.

📥 Download Datasheet

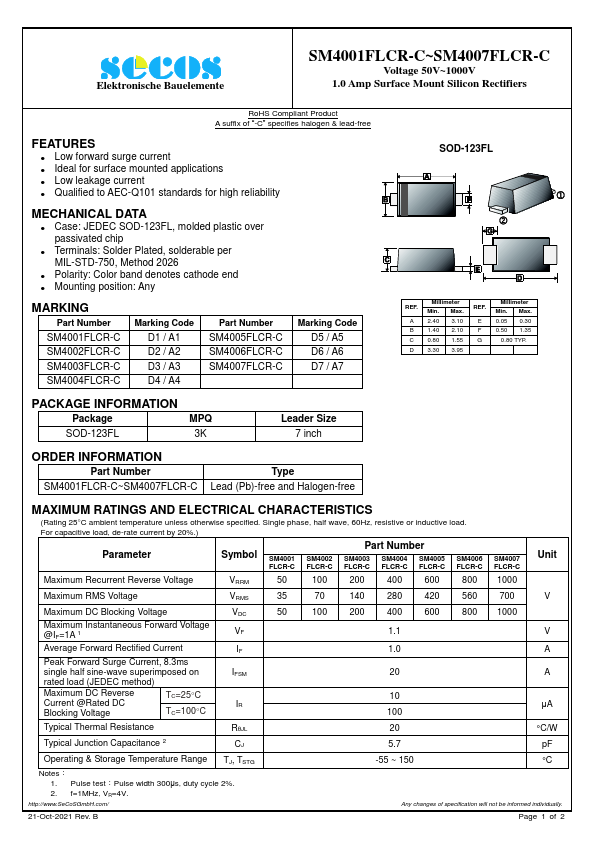

Datasheet preview – SM4004FLCR-C

Datasheet Details

Part number SM4004FLCR-C
Manufacturer SeCoS
File Size 325.28 KB
Description 1.0 Amp Surface Mount Silicon Rectifiers
Datasheet download datasheet SM4004FLCR-C Datasheet

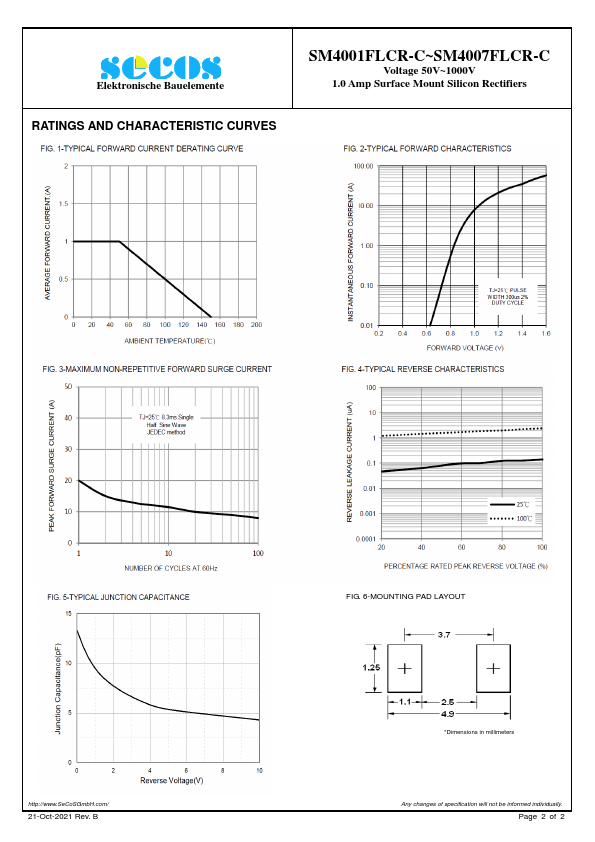

Additional preview pages of the SM4004FLCR-C datasheet.

📁 Similar Datasheet

  • SM4004FL - SURFACE MOUNT RECTIFIER DIODES (Sunmate)
  • SM4004 - RECTIFIER DIODES (AiT Components)
  • SM4004 - 1.0AMP. Surface Mount Glass Passivated Silicon Rectifiers (Kingtronics)
  • SM4004 - GENERAL PURPOSE SILICON RECTIFIER (Dc Components)
  • SM4004 - Surface Mount Rectifiers (HY)
  • SM4004 - 1.0 A Surface Mount Silicon Rectifier (SEP ELECTRONIC)
  • SM4004 - Standard Recovery SMD Rectifier Diodes (Diotec)
  • SM4004 - Surface Mount Standard Recovery Glass Passivated Rectifiers (Weitron Technology)
  • SM4004 - Standard silicon rectifier diodes (Semikron International)
  • SM4004 - Surface Mount Rectifiers (LGE)
Other Datasheets by SeCoS
  • SM4004FL - 1.0 Amp Surface Mount Silicon Rectifiers
  • SM4004B - Surface Mount Silicon Rectifiers
  • SM4004JD - Surface Mount Silicon Rectifier
  • SM4004JD-C - 1.0 Amp Surface Mount Silicon Rectifiers
  • SM4004M - Surface Mount General Purpose Rectifiers
  • SM4004MH - Surface Mount General Purpose Rectifiers
  • SM4004WT-C - Surface Mount Silicon Rectifiers
  • SM4004WTCR-C - 1.0 Amp Surface Mount Silicon Rectifiers

Full PDF Text Transcription

Click to expand full text
Elektronische Bauelemente SM4001FLCR-C~SM4007FLCR-C Voltage 50V~1000V 1.0 Amp Surface Mount Silicon Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES  Low forward surge current  Ideal for surface mounted applications  Low leakage current  Qualified to AEC-Q101 standards for high reliability MECHANICAL DATA  Case: JEDEC SOD-123FL, molded plastic over passivated chip  Terminals: Solder Plated, solderable per MIL-STD-750, Method 2026  Polarity: Color band denotes cathode end  Mounting position: Any MARKING Part Number SM4001FLCR-C SM4002FLCR-C SM4003FLCR-C SM4004FLCR-C Marking Code D1 / A1 D2 / A2 D3 / A3 D4 / A4 Part Number SM4005FLCR-C SM4006FLCR-C SM4007FLCR-C Marking Code D5 / A5 D6 / A6 D7 / A7 SOD-123FL REF.
