A7106 - 600mA 1.5MHz CONSTANT FREQUENCY CURRENT MODE PWM STEP-DOWN DC-DC CONVERTER

A7106 Description

AiT Semiconductor Inc.www.ait-ic.com   A7106 600mA, 1.5MHz CONSTANT FREQUENCY CURRENT MODE PWM STEP-DOWN DC-DC CONVERTER .
The A7106 is a constant frequency, 1.

A7106 Features

* High Efficiency: Up to 96%
* 1.5MHz Constant Switching Frequency
* Current Mode Operation for Excellent Line and Load Transient Response
* No Schottky Diode Required
* 2.5V to 5.5V Input Voltage Range
* 1.2V & 1.8V Fixed/Adjustable Output Voltage
* 100% Duty Cycle in Dr

A7106 Applications

* The internal synchronous rectifier is desired to increase efficiency without an external Schottky diode. 100% duty cycle capability extends battery life in portable devices, while the quiescent current is 180μA at no load, and drops to < 1μA in shutdown. Pulse Skipping Mode operation increases effi

📥 Download Datasheet

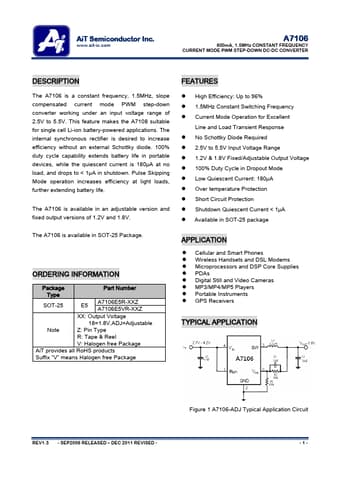

Preview of A7106 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A7106
Manufacturer
AiT Semiconductor
File Size
442.14 KB
Datasheet
A7106-AiTSemiconductor.pdf
Description
600mA 1.5MHz CONSTANT FREQUENCY CURRENT MODE PWM STEP-DOWN DC-DC CONVERTER
