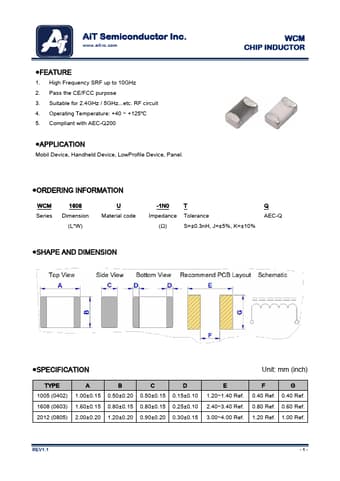

AiT Semiconductor Inc.
www.ait-ic.com
●FEATURE
1. High Frequency SRF up to 10GHz 2. Pass the CE/FCC purpose 3. Suitable for 2.4GHz / 5GHz...etc. RF circuit 4. Operating Temperature: +40 ~ +125℃ 5. Compliant with AEC-Q200
●APPLICATION
Mobil Device, Handheld Device, LowProfile Device, Panel.
WCM
CHIP INDUCTOR
●ORDERING INFORMATION
WCM Series
1608 Dimension
(L*W)
U Material code
-1N0 T
Impedance Tolerance
(Ω)
S=±0.3nH, J=±5%, K=±10%
Q AEC-Q
●SHAPE AND DIMENSION
●SPECIFICATION
Unit: mm (inch)
TYPE 1005 (0402) 1608 (0603) 2012 (0805)
A
B
C
D
1.00±0.15 0.50±0.20 0.50±0.15 0.15±0.10
1.60±0.15 0.80±0.15 0.80±0.15 0.25±0.10
2.00±0.20 1.20±0.20 0.90±0.20 0.30±0.15
E 1.20~1.40 Ref. 2.40~3.40 Ref. 3.00~4.00 Ref.
F
G
0.40 Ref. 0.40 Ref.
0.80 Ref. 0.60 Ref.
1.20 Ref. 1.00 Ref.
