SPORTON LAB.

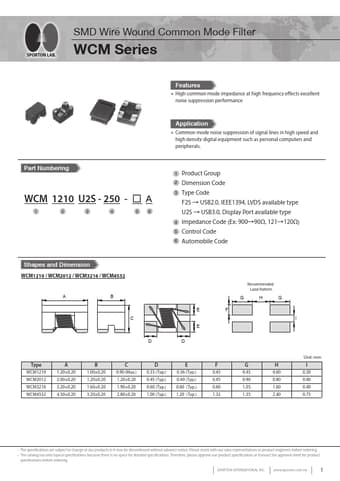

SMD Wire Wound Common Mode Filter
WCM Series
Features
● High common mode impedance at high frequency effects excellent noise suppression performance
SPORTON LAB.
Application
● Common mode noise suppression of signal lines in high speed and high density digital equipment such as personal computers and
peripherals.
Part Numbering
WCM 1210 U2S - 250 - □ A
1 2 3 4 56
1 Product Group 2 Dimension Code 3 Type Code
F2S → USB2.0, IEEE1394, LVDS available type U2S → USB3.0, Display Port available type 4 Impedance Code (Ex: 900→90Ω, 121→120Ω) 5 Control Code 6 Automobile Code
Shapes and Dimension
WCM1210 / WCM2012 / WCM3216 / WCM4532
AB C
E E
DD
Type WCM1210 WCM2012 WCM3216 WCM4532
A 1.20±0.20 2.00±0.20 3.20±0.20 4.50±0.20
B 1.00±0.20 1.20±0.20 1.60±0.20 3.20±0.20
C 0.
