WCM-1210HS - COMMON MODE CHOKE

Datasheet Summary

Features

  • &.

📥 Download Datasheet

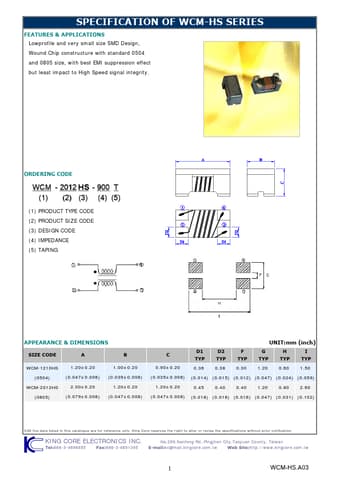

Datasheet preview – WCM-1210HS

Datasheet Details

Part number WCM-1210HS
Manufacturer KING CORE
File Size 309.18 KB
Description COMMON MODE CHOKE
Datasheet download datasheet WCM-1210HS Datasheet
Additional preview pages of the WCM-1210HS datasheet.

📁 Similar Datasheet

  • WCM1005 - CHIP INDUCTOR (AiT Semiconductor)
  • WCM1210 - SMD Wire Wound Common Mode Filter (SPORTON)
  • WCM1600 - AC / DC Sensing Current Module (Winson)
  • WCM1608 - CHIP INDUCTOR (AiT Semiconductor)
  • WCM1700 - AC / DC Sensing Current Module (Winson)
  • WCM1800 - AC / DC Sensing Current Module (Winson)
  • WCM2001 - MOSFET (WillSEMI)
  • WCM2002 - MOSFET (WillSEMI)
  • WCM2007 - MOSFET (WillSEMI)
  • WCM2012 - CHIP INDUCTOR (AiT Semiconductor)
Other Datasheets by KING CORE

Full PDF Text Transcription

Click to expand full text
SPECIFICATION OF WCM-HS SERIES FEATURES & APPLICATIONS Lowprofile and very small size SMD Design, Wound Chip constructure with standard 0504 and 0805 size, with best EMI suppression effect but least impact to High Speed signal integrity. ORDERING CODE (1) PRODUCT TYPE CODE (2) PRODUCT SIZE CODE (3) DESIGN CODE (4) IMPEDANCE (5) TAPING APPEARANCE & DIMENSIONS SIZE CODE A B WCM-1210HS (0504) WCM-2012HS (0805) 1.20±0.20 (0.047±0.008) 2.00±0.20 (0.079±0.008) 1.00±0.20 (0.039±0.008) 1.20±0.20 (0.047±0.008) UNIT:mm (inch) C 0.90±0.20 D1 TYP 0.36 D2 TYP 0.38 F TYP 0.30 G TYP 1.20 H TYP 0.60 I TYP 1.50 (0.035±0.008) (0.014) (0.015) (0.012) (0.047) (0.024) (0.059) 1.20±0.20 0.45 0.40 0.40 1.20 0.80 2.60 (0.047±0.008) (0.018) (0.016) (0.016) (0.047) (0.031) (0.
