WCM1800 Datasheet PDF - Winson AC / DC Sensing Current Module Specs

WCM1800 - AC / DC Sensing Current Module

Datasheet Summary

Description

The Winson WCM1800 provides economical and precise solution for both AC and DC current sensing in industrial, commercial and communications systems.

The WCM1800 consists of a current sensor, temperature sensor, a very high accuracy A/D converter and digital signal output of current.

Datasheet Details

Part number	WCM1800
Manufacturer	Winson
File Size	959.21 KB
Description	AC / DC Sensing Current Module
Datasheet	WCM1800 Datasheet
Additional preview pages of the WCM1800 datasheet.

📁 Similar Datasheet

WCM1005 - CHIP INDUCTOR (AiT Semiconductor)

WCM1210 - SMD Wire Wound Common Mode Filter (SPORTON)

WCM1608 - CHIP INDUCTOR (AiT Semiconductor)

WCM-1210HS - COMMON MODE CHOKE (KING CORE)

WCM-1210HS-250T - COMMON MODE CHOKE (KING CORE)

WCM-1210HS-600T - COMMON MODE CHOKE (KING CORE)

WCM-1210HS-900T - COMMON MODE CHOKE (KING CORE)

WCM-2012 - COMMON MODE CHOKE (KING CORE)

WCM-2012-120T - COMMON MODE CHOKE (KING CORE)

WCM-2012-121T - COMMON MODE CHOKE (KING CORE)

Full PDF Text Transcription

Click to expand full text

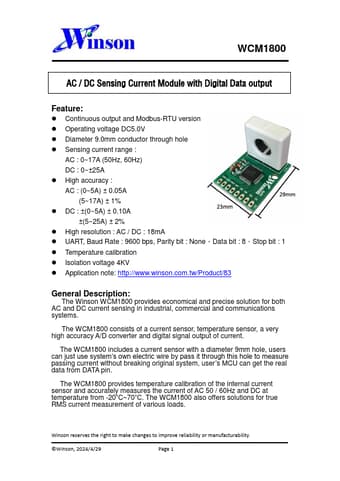

WCM1800 AC / DC Sensing Current Module with Digital Data output Feature:  Continuous output and Modbus-RTU version  Operating voltage DC5.0V  Diameter 9.0mm conductor through hole  Sensing current range : AC : 0~17A (50Hz, 60Hz) DC : 0~±25A  High accuracy : AC : (0~5A) ± 0.05A (5~17A) ± 1%  DC : ±(0~5A) ± 0.10A ±(5~25A) ± 2%  High resolution : AC / DC : 18mA  UART, Baud Rate : 9600 bps, Parity bit : None，Data bit : 8，Stop bit : 1  Temperature calibration  Isolation voltage 4KV  Application note: http://www.winson.com.tw/Product/83 General Description: The Winson WCM1800 provides economical and precise solution for both AC and DC current sensing in industrial, commercial and communications systems.
