AT1117 Datasheet - Aimtron Technology

Low Dropout Fast Response Positive Adjustable Regulator

AT1117 Features

* Guaranted Output Voltage Accuracy within 2%

* Fast Transient Response

* Guaranteed Dropout Voltage at Multiple Currrents

* Load Regulation : 0.1% Typ.

* Line Regulation : 0.03% Typ.

* Low Dropout Voltage : 1.1V Typ. at I =1A

* Trimmed Current

AT1117 General Description

The AT1117 is a low dropout three-terminal adjustable regulators with 1A output current capability. In order to obtain lower dropout voltage and faster transient response, which is critical for low voltage applications, the AT1117 has been optimized. The device is available in an adjustable version .

AT1117 Datasheet (294.69 KB)

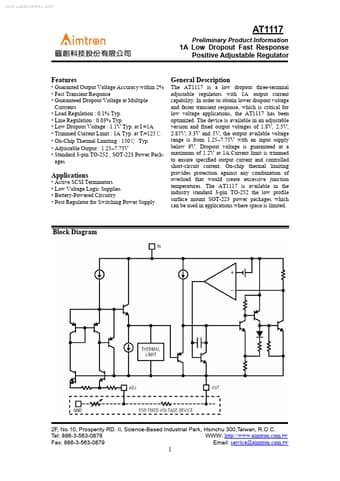

AT1117 Datasheet Preview — Preview of AT1117 PDF

Datasheet Details

Part number:

AT1117

Manufacturer:

Aimtron Technology

File Size:

294.69 KB

Description:

Low dropout fast response positive adjustable regulator.
