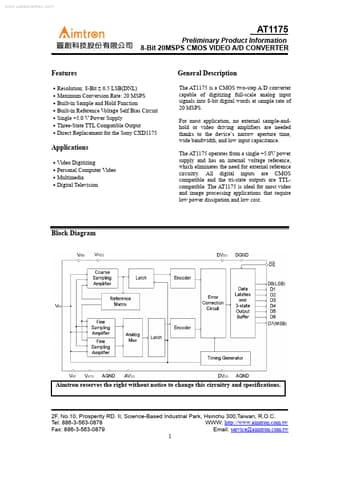

Part number: AT1175
Manufacturer: Aimtron Technology
File Size: 250.63KB
Download: 📄 Datasheet
Description: 8-BIT 20MSPS CMOS VIDEO A/D CONVERTER
˙Resolution: 8-Bit ± 0.5 LSB(DNL) ˙Maximum Conversion Rate: 20 MSPS ˙Built-in Sample and Hold Function ˙Built-in Reference Voltage Self Bias Circuit ˙Single +5.0 V Power .
that require low power dissipation and low cost.
Applications
˙Video Digitizing ˙Personal Computer Video ˙Multimedia ˙D.
The AT1175 is a CMOS two-step A/D converter capable of digitizing full-scale analog input signals into 8-bit digital words at sample rate of 20 MSPS. For most application, no external sample-andhold or video driving amplifiers are needed thanks to th.
