A1441, Low-Voltage Full-Bridge Brushless DC Motor Driver

A1441 Low-Voltage Full-Bridge Brushless DC Motor Driver with Hall Element Commutation .
The A1441 is a full-bridge motor driver designed to drive low-voltage bipolar brushless dc motors.

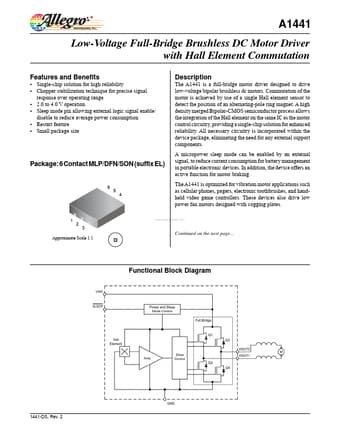

datasheet Preview Page 1 from Datasheet4u.com

A1441_AllegroMicroSystems.pdf

A1441 Datasheet Preview — Preview of A1441 PDF

Datasheet Details

Part number:

A1441

Manufacturer:

Allegro MicroSystems

File Size:

235.39 KB

Description:

Low-Voltage Full-Bridge Brushless DC Motor Driver

Features

* ▪ Single-chip solution for high reliability ▪ Chopper stabilization technique for precise signal response over operating range ▪ 2.0 to 4.0 V operation ▪ Sleep mode pin allowing external logic signal enable/ disable to reduce average power consumption ▪ Restart feature ▪ Small package size Descript

Applications

* such as cellular phones, pagers, electronic toothbrushes, and handheld video game controllers. These devices also drive low power fan motors designed with cogging plates. www. DataSheet4U. com Package: 6 Contact MLP/DFN/SON (suffix EL) 6 5 4 1 2 3 Approximate Scale 1:1 Continued on the next p
