A1442

Low Voltage Full Bridge Brushless DC Motor Driver

A1442 Features

* ▪ Low voltage operation ▪ Reverse voltage protection on VDD and S¯¯L¯¯E¯¯E¯¯P pins ▪ Output short circuit and thermal shutdown protections ▪ Soft switching algorithm to reduce audible switching noise and EMI interference ▪ Unidirectional working mode provides motor rotation in one direction ▪ Hall c

A1442 General Description

The A1442 is a full-bridge motor driver designed to drive lowvoltage, brushless DC motors. Commutation of the motor is achieved by use of a single Hall element to detect the rotational position of an alternating-pole ring magnet. A high-density CMOS semiconductor process allows the integration of al.

A1442 Datasheet (249.10 KB)

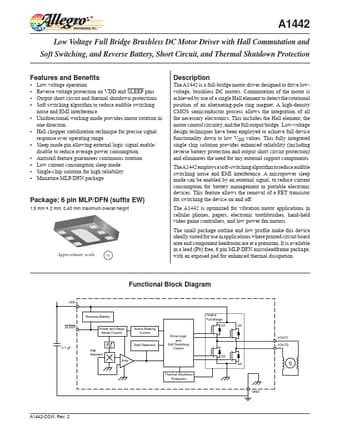

Preview of A1442 PDF

Datasheet Details

Part number:

A1442

Manufacturer:

Allegro Microsystems

File Size:

249.10 KB

Description:

Low voltage full bridge brushless dc motor driver.
A1442 Low Voltage Full Bridge Brushless DC Motor Driver with Hall Commutation and Soft Switching, and Reverse Battery, Short Circuit, and Thermal Shut.
