A6266 Datasheet, Controller, Allegro MicroSystems

A6266 Features

  • Controller ▪ AEC-Q100 Grade 0 Automotive Qualified ▪ Constant current LED drive ▪ 5 to 50 V supply ▪ Boost mode ▪ Drives up to 15 LEDs in series ▪ Programmable switching frequency 100 to 700 kHz ▪

PDF File Details

Part number:

A6266

Manufacturer:

Allegro MicroSystems

File Size:

819.42kb

Download:

📄 Datasheet

Description:

High current led controller. The A6266 is a boost converter controller, providing a programmable constant current output for driving high power LEDs in series. Dr

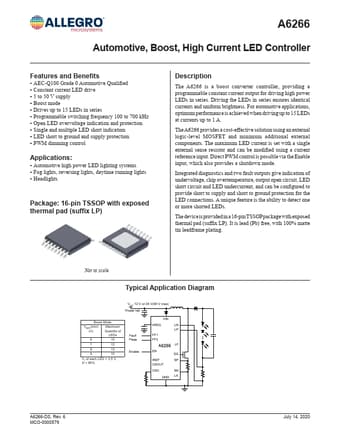

Datasheet Preview: A6266 📥 Download PDF (819.42kb)
Page 2 of A6266 Page 3 of A6266

A6266 Application

  • Applications ▪ Automotive high power LED lighting systems ▪ Fog lights, reversing lights, daytime running lights ▪ Headlights Package: 16-pin TSSOP
