A6268 Datasheet, Controller, Allegro MicroSystems

A6268 Features

  • Controller ▪ AEC-Q100 Grade 0 Automotive Qualified ▪ Constant current LED drive ▪ 5 to 50 V supply ▪ Boost or buck-boost modes ▪ Drives up to 15 LEDs in series ▪ Programmable switching frequency 1

PDF File Details

Part number:

A6268

Manufacturer:

Allegro MicroSystems

File Size:

1.03MB

Download:

📄 Datasheet

Description:

Automotive high current led controller. The A6268 is a DC-to-DC converter controller, providing a programmable constant current output for driving high power LEDs in series.

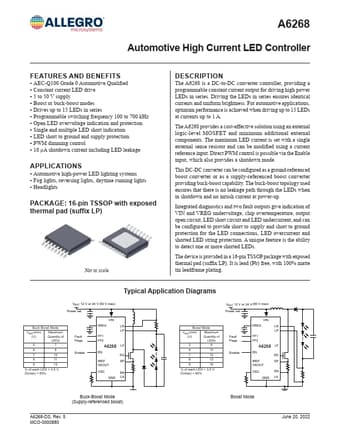

Datasheet Preview: A6268 📥 Download PDF (1.03MB)
Page 2 of A6268 Page 3 of A6268

A6268 Application

  • Applications ▪ Automotive high-power LED lighting systems ▪ Fog lights, reversing lights, daytime running lights ▪ Headlights PACKAGE: 16-pin TSSOP
