The A6269 is Automotive LED Array Driver designed by Allegro.

Product Overview

Allegro

📥 Download Datasheet

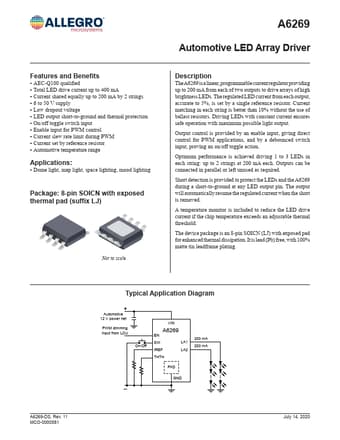

A6269 Automotive LED Array Driver by Allegro - Datasheet Preview — Datasheet preview – A6269

Datasheet Details

Part number	A6269
Manufacturer	Allegro
File Size	1.27 MB
Description	Automotive LED Array Driver
Datasheet	A6269-Allegro.pdf
Additional preview pages of the A6269 datasheet.

Product details

Description

TheA6269 is a linear, programmable current regulator providing up to 200 mA from each of two outputs to drive arrays of high brightness LEDs.

Features

AEC-Q100 qualified.
Total LED drive current up to 400 mA.
Current shared equally up to 200 mA by 2 strings.
6 to 50 V supply.
Low dropout voltage.
LED output short-to-ground and thermal protection.
On/off toggle switch input.
Enable input for PWM control.
Current slew rate limit during PWM.
Current set by reference resistor.
Automotive temperature range.
