ATS622LSB TRUE ZERO-SPEED HALL-EFFECT GEAR-TOOTH SENSOR

Operating, target speed > 20 RPM Output edges before which calibration is completed * Output falling edges for startup calibration to be complete Minimum Speed Maximum Speed Timing Accuracy nmin nmax tθ 60 teeth per second = 1 r/s Target speed = 1000 rpm, 0.5 mm < AG < 2.5 mm * * .

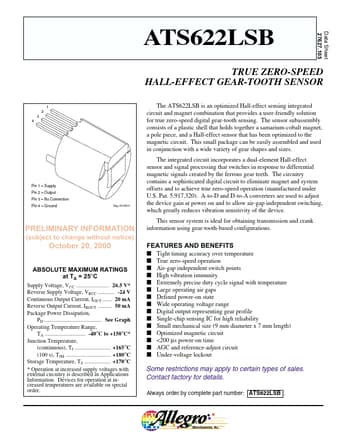

ATS622LSB 1 2 3 4 TRUE ZERO-SPEED HALL-EFFECT GEAR-TOOTH SENSOR The ATS622LSB is an optimized Hall-effect sensing integrated circuit and magnet combination that provides a user-friendly solution for true zero-speed digital gear-tooth sensing. The sensor subassembly consists of a plastic shell that holds together a samarium-cobalt magnet, a pole piece, and a Hall-effect sensor that has been optimized to the magnetic circuit. This small package can be easily assembled and used in conjunction with.

ATS622LSB Features

* I I I I I I I I I I I I I I I Tight timing accuracy over temperature True zero-speed operation Air-gap independent switch points High vibration immunity Extremely precise duty cycle signal with temperature Large operating air gaps Defined power-on state Wide operating voltage range Digital output re

ATS622LSB_AllegroMicroSystems.pdf

ATS622LSB Datasheet Preview — Preview of ATS622LSB PDF

Datasheet Details

Part number:

ATS622LSB

Manufacturer:

Allegro MicroSystems

File Size:

186.08 KB

Description:

True zero-speed hall-effect gear-tooth sensor.
