ATS651LSH - Two-Wire Self-Calibrating Differential Speed and Direction Sensor

Allegro MicroSystems

The ATS651LSH by Allegro MicroSystems is a Two-Wire Self-Calibrating Differential Speed and Direction Sensor. Below is the official datasheet preview.

📥 Download Datasheet

ATS651LSH Two-Wire Self-Calibrating Differential Speed and Direction Sensor by Allegro MicroSystems - Datasheet Preview — Official preview page of the **ATS651LSH** Two-Wire Self-Calibrating Differential Speed and Direction Sensor datasheet (Allegro MicroSystems).

Datasheet Details

Part number	ATS651LSH
Manufacturer	Allegro MicroSystems
File Size	577.55 KB
Description	Two-Wire Self-Calibrating Differential Speed and Direction Sensor
Datasheet	ATS651LSH_AllegroMicroSystems.pdf

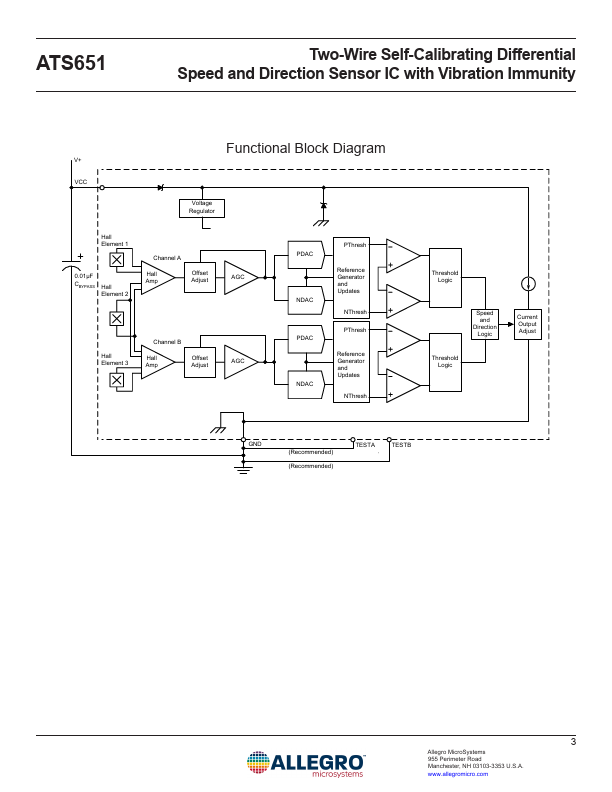

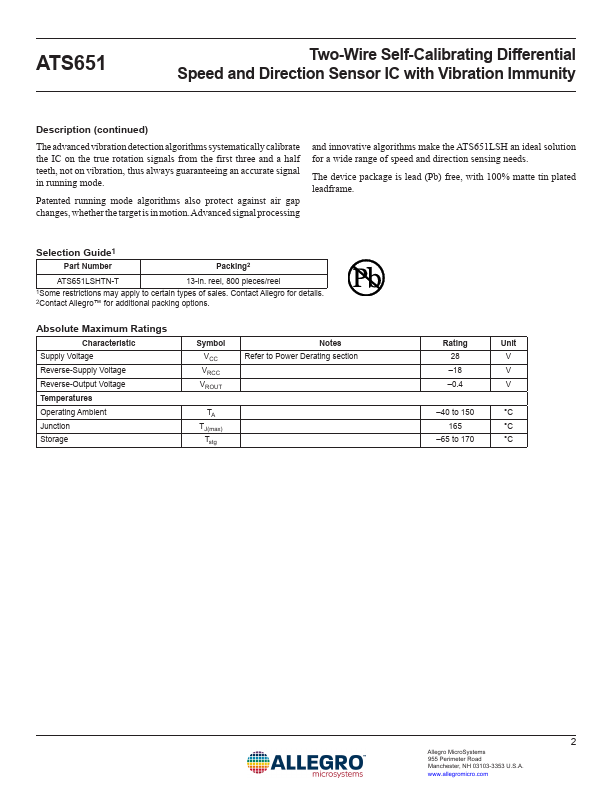

Additional preview pages of the ATS651LSH datasheet.

ATS651LSH Product details

Description

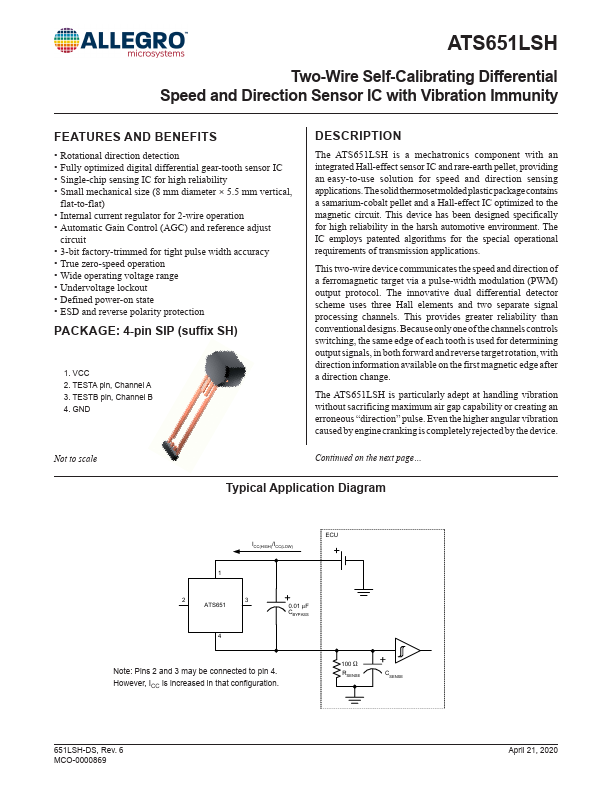

The ATS651LSH is a mechatronics component with an integrated Hall-effect sensor IC and rare-earth pellet, providing an easy-to-use solution for speed and direction sensing applications.

Features

Rotational direction detection.
Fully optimized digital differential gear-tooth sensor IC.
Single-chip sensing IC for high reliability.
Small mechanical size (8 mm diameter × 5.5 mm vertical, flat-to-flat).
Internal current regulator for 2-wire operation.
Automatic Gain Control (AGC) and reference adjust circuit.
3-bit factory-trimmed for tight pulse width accuracy.
True zero-speed operation.
Wide operating voltage.
