ATS685LSH

Differential Gear Tooth Sensor

ATS685LSH Features

* Fully optimized differential digital gear tooth sensor IC

* Running mode lockout

* Unique algorithms for increased vibration immunity

* AGC and reference adjust circuit

* Air gap independent switch points

* Digital output representing gear profile

ATS685LSH General Description

TheATS685LSH is an optimized Hall-effect sensing integrated circuit and rare-earth pellet combination that provides a user-friendly solution for true zero-speed digital gear-tooth sensing in two-wire applications. The sensor IC consists of a single-shot molded plastic package that includes a samariu.

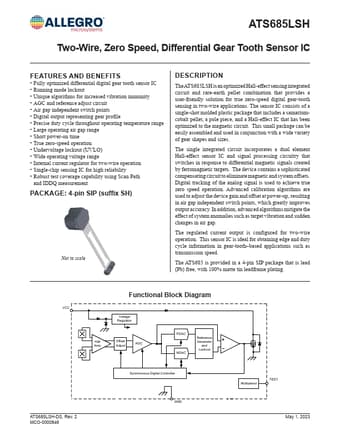

ATS685LSH Datasheet (1.21 MB)

Preview of ATS685LSH PDF

Datasheet Details

Part number:

ATS685LSH

Manufacturer:

Allegro MicroSystems

File Size:

1.21 MB

Description:

Differential gear tooth sensor.
