SI-3018LSA LINEAR REGULATOR

www.DataSheet4U.com SI-3018LSA LOW-VOLTAGE, HIGH-CURRENT 1.8 V LINEAR REGULATOR The SI-3018LSA is designed to meet the requirement for increased integration and reliability in low-voltage, high-current, linear regulator applications such as personal computers (PCs) and set-top boxes. Each device incorporates a monolithic low-level reference and control circuit with a high-current pnp transistor in a power multi-chip module (PMCM™). Regulated output voltages of 2.5 V or 3.3 V are also available.

SI-3018LSA Features

* s s s s s s 1 A Output Current Low Dropout voltage LSTTL/CMOS-Compatible On/Off Control Less Than 1 µA “Sleep” Current Internal Foldback Overcurrent Limiting Internal Thermal Protection Surface-Mount Package Always order by complete part number: SI-3018LSA-TL , where “-TL” indicates tape and reel.

SI-3018LSA Datasheet (189.15 KB)

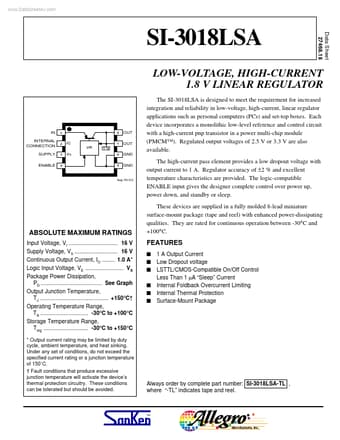

Preview of SI-3018LSA PDF
SI-3018LSA Datasheet Preview Page 2 SI-3018LSA Datasheet Preview Page 3

Datasheet Details

Part number:

SI-3018LSA

Manufacturer:

Allegro MicroSystems

File Size:

189.15 KB

Description:

Linear regulator.
