SI-3011ZD Datasheet - SANKEN

Linear Regulator

SI-3011ZD Features

* Adjustable Output Voltage (VOUT = 1.2 V to 5.0 V)

* Low Dropout Voltage, ΔVDIF ≤ 0.6 V (IOUT = 3 A)

* Output On/Off Function

* Protections Overcurrent Protection (OCP): Fold-back Thermal Shutdown (TSD) with Hysteresis: Autorestart Typical Application Packages TO263-5L Not to scale

SI-3011ZD General Description

The SI-3011ZD is a linear regulator IC whose maximum output current is 3 A. Output voltage is adjusted by external resistors. The IC has a built-in low saturation PNP bipolar transistor and can operate with a low input/output voltage difference. The IC has various functions including the Output On/O.

SI-3011ZD Datasheet (508.73 KB)

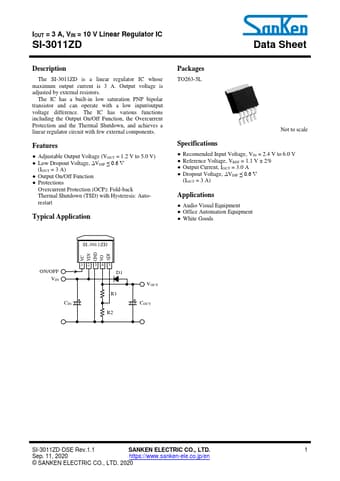

Preview of SI-3011ZD PDF

Datasheet Details

Part number:

SI-3011ZD

Manufacturer:

Sanken ↗

File Size:

508.73 KB

Description:

Linear regulator.
