SI-3010KD Datasheet - SANKEN

Linear Regulator

SI-3010KD Features

* Low Dropout Voltage, ΔVDIF ≤ 0.6 V (IOUT = 1 A)

* Output On/Off Function

* Protections Overcurrent Protection (OCP): Fold-back (SI3010KD), Drooping (SI-3033KD), Auto-restart Thermal Shutdown (TSD): Auto-restart Typical Application (SI-3010KD) Packages TO263-5L Not to scale Selection

SI-3010KD General Description

The SI-3000KD series are linear regulator ICs whose maximum output current is 1 A. The output voltage of the SI-3010KD is adjusted by external resistors. The output voltage of the SI-3033KD is 3.3 V fixed. The ICs have a built-in low saturation PNP bipolar transistor and can operate with a low input.

SI-3010KD Datasheet (748.91 KB)

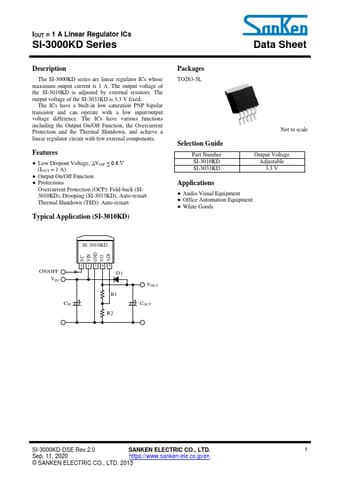

Preview of SI-3010KD PDF

Datasheet Details

Part number:

SI-3010KD

Manufacturer:

Sanken ↗

File Size:

748.91 KB

Description:

Linear regulator.
