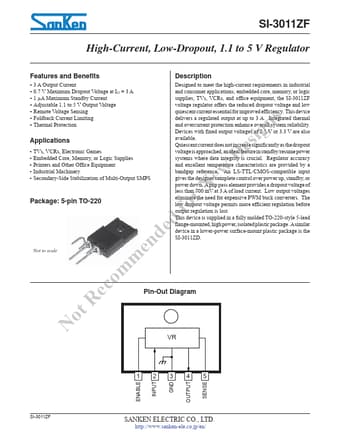

SI-3011ZF High-Current, Low-Dropout, 1.1 to 5 V Regulator
Features and Benefits
Description
▪ 3 A Output Current
Designed to meet the high-current requirements in industrial
▪ 0.7 V Maximum Dropout Voltage at IO = 3 A
and consumer applications; embedded core, memory, or logic
▪ 1 μA Maximum Standby Current
supplies; TVs, VCRs, and office equipment, the SI-3011ZF
▪ Adjustable 1.1 to 5 V Output Voltage
voltage regulator offers the reduced dropout voltage and low
▪ Remote Voltage Sensing ▪ Foldback Current Limiting ▪ Thermal Protection
Applications
▪ TVs, VCRs, Electronic Games ▪ Embedded Core, Memory, or Logic Supplies
quiescent current essential for improved efficiency. This device delivers a regulated output at up to 3 A.
SI-3011ZF Datasheet
