STR-S6401 OFF-LINE SWITCHING REGULATORS WITH POWER MOSFET OUTPUT

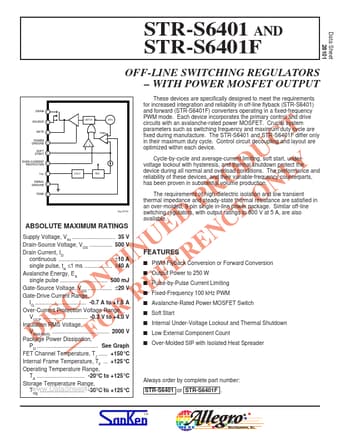

www.DataSheet4U.com STR-S6401 AND STR-S6401F OFF-LINE SWITCHING REGULATORS WITH POWER MOSFET OUTPUT DRAIN 1 LATCH OSC. Data Sheet 28101 SOURCE 2 GATE POWER GROUND SOFT START OVER-CURRENT PROTECTION V IN 3 PWM + 4 + These devices are specifically designed to meet the requirements for increased integration and reliability in off-line flyback (STR-S6401) and forward (STR-S6401F) converters operating in a fixed-frequency PWM mode. Each device incorporates the primary control and d.

STR-S6401 Features

* s PWM Flyback Conversion or Forward Conversion s Output Power to 250 W s Pulse-by-Pulse Current Limiting s Fixed-Frequency 100 kHz PWM s Avalanche-Rated Power MOSFET Switch s Soft Start s Internal Under-Voltage Lockout and Thermal Shutdown s Low External Component Count s Over-Molded SIP with Isola
