A1262 Ultrasensitive Hall-Effect Latch

A1262 Description

A1262 2D Dual-Channel Ultrasensitive Hall-Effect Latch .
The A1262 is a two channel, latching Hall-effect sensor IC that features both vertical and planar Hall elements.

A1262 Features

* 2D magnetic sensing via planar and vertical Hall elements
* Quadrature outputs
* 90° phase separation between channels
* Dual-channel output allows independent use of Z-axis planar Hall in conjunction with vertical Hall:
* Y-axis (default option)
* X

A1262 Applications

* (L temperature range option)
* Output short-circuit protection
* Resistant to physical stress
* Reverse-battery protection
* Superior temperature stability
* Supply voltage Zener clamp
* Small size TYPICAL APPLICATIONS
* Automotive

📥 Download Datasheet

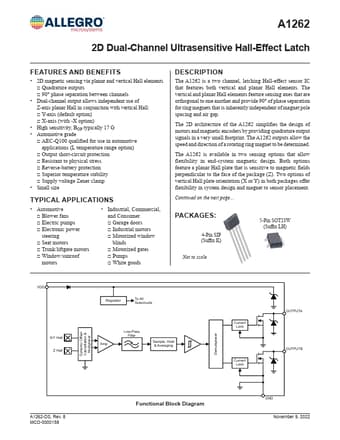

Preview of A1262 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1262
Manufacturer
Allegro
File Size
4.68 MB
Datasheet
A1262-Allegro.pdf
Description
Ultrasensitive Hall-Effect Latch
