CT430, TMR Current Sensor

CT430 XtremeSense™ TMR Current Sensor with Ultra-Low Noise and <1% Total Error .
The CT430 is a high bandwidth and ultra-low noise integrated contact current sensor that uses Allegro patented XtremeSense™ TMR technology to enable.

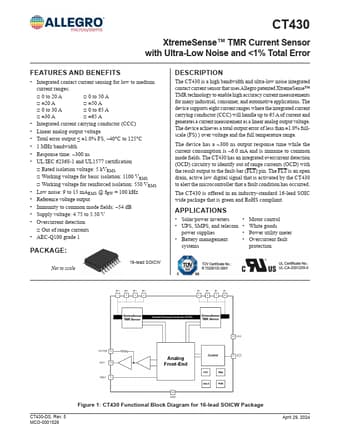

datasheet Preview Page 1 from Datasheet4u.com

CT430-Allegro.pdf

CT430 Datasheet Preview — Preview of CT430 PDF

Datasheet Details

Part number:

CT430

Manufacturer:

Allegro

File Size:

1.88 MB

Description:

TMR Current Sensor

Features

* Integrated contact current sensing for low to medium current ranges:
* 0 to 20 A
* 0 to 50 A
* ±20 A
* ±50 A
* 0 to 30 A
* 0 to 65 A
* ±30 A
* ±65 A
* Integrated current carrying conductor (CCC)
* Li

Applications

* The device supports eight current ranges where the integrated current carrying conductor (CCC) will handle up to 65 A of current and generates a current measurement as a linear analog output voltage. The device achieves a total output error of less than ±1.0% fullscale (FS) ) over voltage and the f
