CT431 - TMR Current Sensor

Allegro

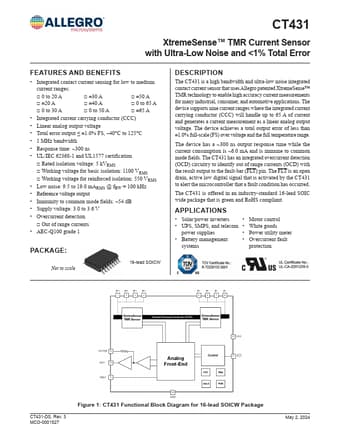

CT431 Datasheet Preview — Preview of CT431 PDF

Datasheet Details

Part number	CT431
Manufacturer	Allegro
File Size	1.91 MB
Description	TMR Current Sensor
Datasheet	CT431-Allegro.pdf

CT431 Product details

Description

The CT431 is a high bandwidth and ultra-low noise integrated contact current sensor that uses Allegro patented XtremeSense™ TMR technology to enable high accuracy current measurements for many industrial, consumer, and automotive applications.

Features

Integrated contact current sensing for low to medium current ranges:.
0 to 20 A.
±20 A.
0 to 30 A.
±30 A.
±40 A.
0 to 50 A.
±50 A.
0 to 65 A.
±65 A.
Integrated current carrying conductor (CCC).
Linear analog output voltage.
Total error output ≤ ±1.0% FS,.
40°C to 125°C.
1 MHz bandwidth.
Response time: ~300 ns.
UL/IEC 62368-1 and UL1577 ce.
