CT433, TMR Current Sensor

CT433 XtremeSense™ TMR Current Sensor with High dV/dt Immunity, 5 kV Isolation, and Common-Mode Field Rejection .
The CT433 is a high bandwidth and ultra-low noise integrated contact current sensor that uses Allegro patented XtremeSense™ TMR technology to enable h.

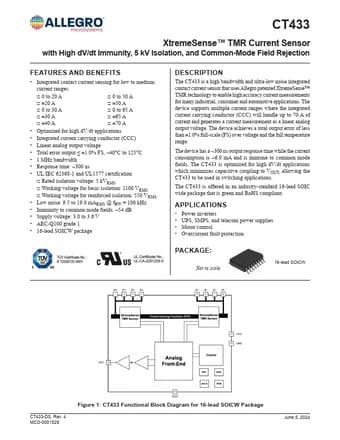

datasheet Preview Page 1 from Datasheet4u.com

CT433-Allegro.pdf

CT433 Datasheet Preview — Preview of CT433 PDF

Datasheet Details

Part number:

CT433

Manufacturer:

Allegro

File Size:

1.43 MB

Description:

TMR Current Sensor

Features

* Integrated contact current sensing for low to medium current ranges:
* 0 to 20 A
* ±20 A
* 0 to 30 A
* ±30 A
* ±40 A
* 0 to 50 A
* ±50 A
* 0 to 65 A
* ±65 A
* ±70 A
* Optimized for high dV/dt applic

Applications

* Integrated current carrying conductor (CCC)
* Linear analog output voltage
* Total error output ≤ ±1.0% FS,
* 40°C to 125°C
* 1 MHz bandwidth
* Response time: ~300 ns
* UL/IEC 62368-1 and UL1577 certification
* Rated isolation voltage:
