CT8131

Integrated Omnipolar TMR Digital Switches

CT8131 Features

* Sensitivity with BOP range: 9 to 70 G

* Ultra-low power consumption: ~110 nA @ VDD = 1.8 V and fS = 2 Hz

* Supply voltage range: 1.7 to 5.5 V

* Sensor polarity: omnipolar

* Digital CMOS outputs:

* Push-pull

* Open drain

* Undervoltage

CT8131 General Description

The CT813x series of omnipolar tunnel magnetoresistance (TMR) digital switches are designed for consumer and industrial applications. The devices are based on Allegro patented XtremeSense™ TMR technology with integrated CMOS process to provide a monolithic solution for superior sensing performance. .

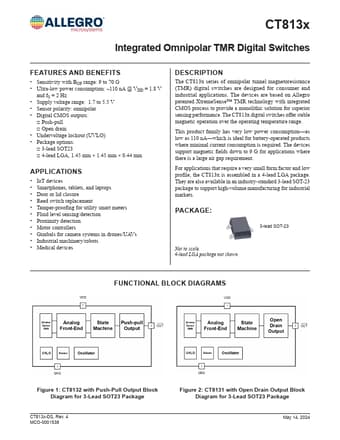

CT8131 Datasheet (2.23 MB)
