ASM3P2869A

Low Power Peak EMI Reducing Solution

ASM3P2869A Features

* Generates an EMI optimized clock signal at the output Integrated loop filter components Operates with a 3.3V /2.5V supply Operating current less than 4mA Low power CMOS design Input frequency range: 6MHz to 12MHz for 2.5V : 6MHz to 13MHz for 3.3V

ASM3P2869A General Description

The ASM3P2869A is a versatile spread spectrum frequency modulator designed specifically for a wide range of clock frequencies. The ASM3P2869A reduces electromagnetic interference (EMI) at the clock source, allowing system wide reduction of EMI of all clock dependent signals. The ASM3P2869A allows si.

ASM3P2869A Datasheet (218.60 KB)

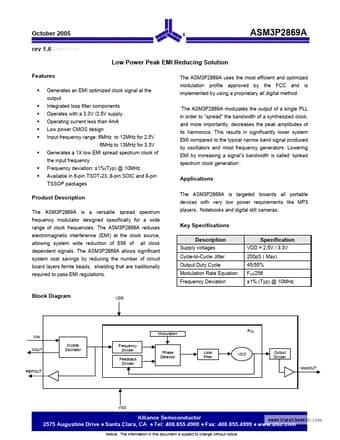

Preview of ASM3P2869A PDF

Datasheet Details

Part number:

ASM3P2869A

Manufacturer:

Alliance Semiconductor Corporation

File Size:

218.60 KB

Description:

Low power peak emi reducing solution.
