AS4C512M8D4A - 512M x 8 bit DDR4 Synchronous DRAM

Alliance Semiconductor

📥 Download Datasheet

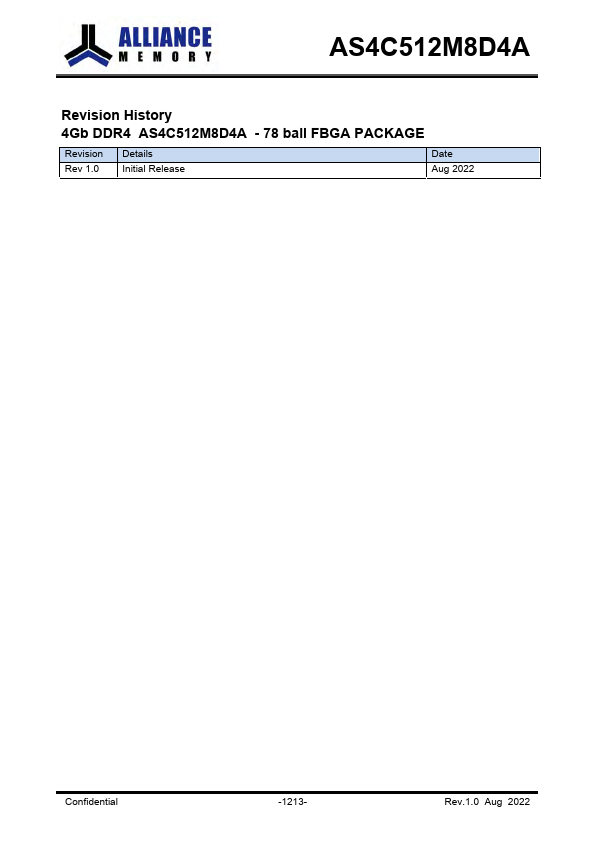

AS4C512M8D4A Datasheet Preview — Preview of AS4C512M8D4A PDF

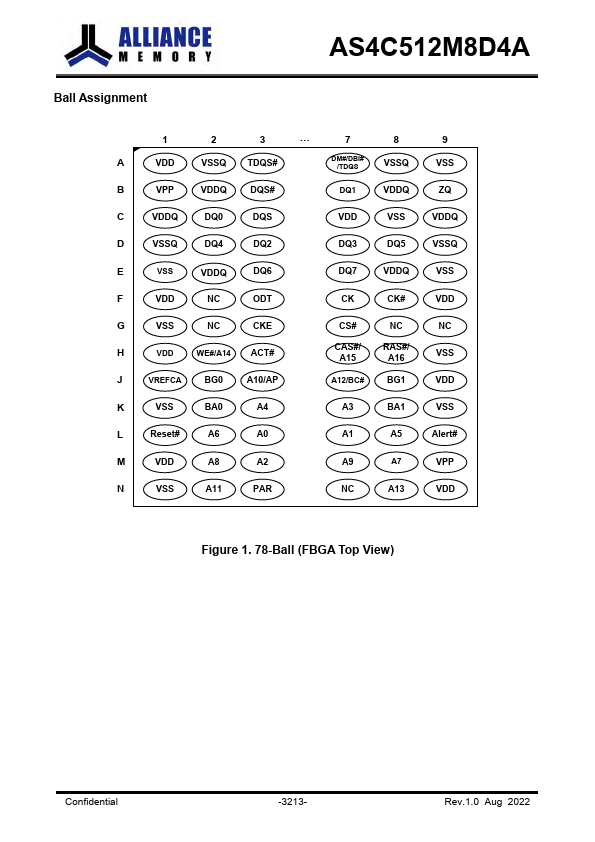

datasheet Preview Page 2

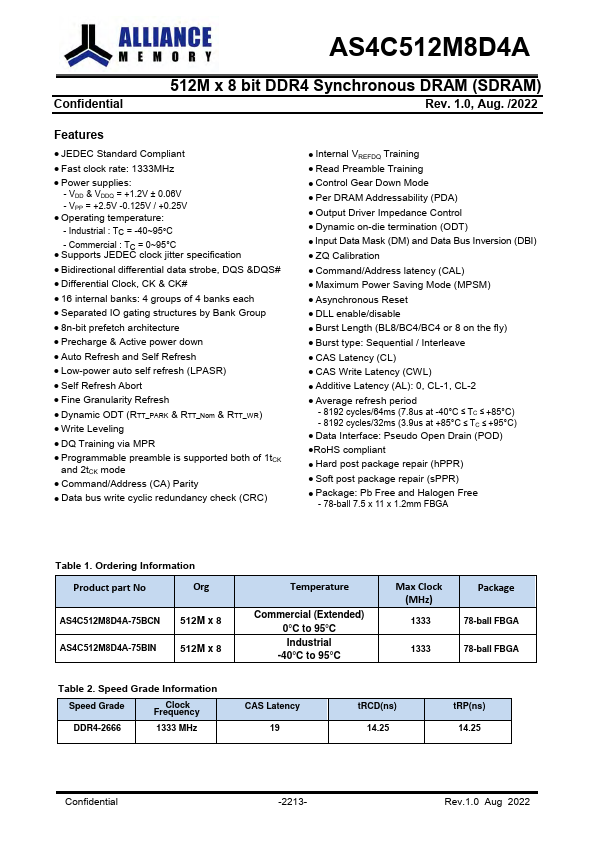

datasheet Preview Page 3

Datasheet Details

Part number	AS4C512M8D4A
Manufacturer	Alliance Semiconductor
File Size	3.85 MB
Description	512M x 8 bit DDR4 Synchronous DRAM
Datasheet	AS4C512M8D4A-AllianceSemiconductor.pdf

AS4C512M8D4A Product details

Features

JEDEC Standard Compliant.
Fast clock rate: 1333MHz.
Power supplies: - VDD & VDDQ = +1.2V ± 0.06V - VPP = +2.5V -0.125V / +0.25V.
Operating temperature: -Industrial : TC = -40~95°C -Commercial : TC = 0~95°C.
Supports JEDEC clock jitter specification.
Bidirectional differential data strobe, DQS &DQS#.
Differential Clock, CK & CK#.
16 internal banks: 4 groups of 4 banks each.
Separated IO gating structures by Bank Group.
8n-bit prefetch architec.
