AS7C32096A 3.3V 256K x 8 CMOS SRAM

AS7C32096A Description

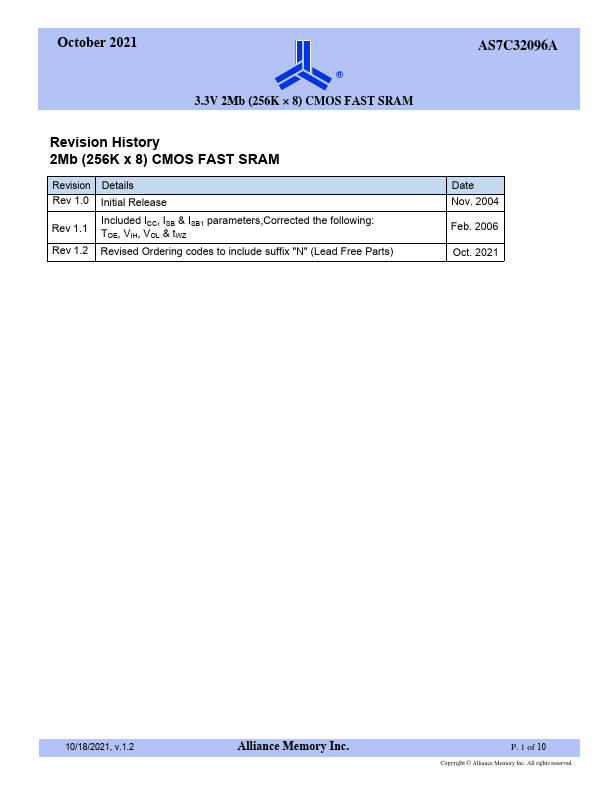

October 2021 ® 3.3V 2Mb (256K × 8) CMOS FAST SRAM Revision History 2Mb (256K x 8) CMOS FAST SRAM Revision Details Rev 1.0 Initial Release Rev 1.1 .
The AS7C32096A is a high-performance CMOS 2,097,152-bit Static Random Access Memory (SRAM) device organized as 262,144 words × 8 bits.

AS7C32096A Features

* Industrial and commercial temperature
* Organization: 262,144 words × 8 bits
* Center power and ground pins
* High speed - 10/12/15/20 ns address access time - 4/5/6/7 ns output enable access time
* Low power consumption: ACTIVE - 650 mW / max @ 10 ns

AS7C32096A Applications

* where fast data access, low power, and simple interfacing are desired. Equal address access and cycle times (tAA, tRC, tWC) of 10/12/15/20 ns with output enable access times (tOE) of 4/5/6/7 ns are ideal for high-performance applications. The chip enable input CE permits easy memory expansion with m

📥 Download Datasheet

Preview of AS7C32096A PDF

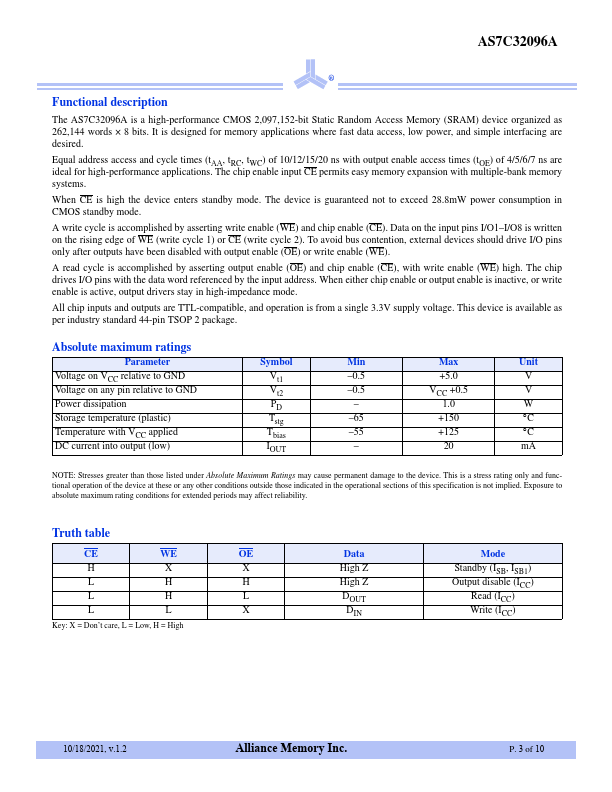

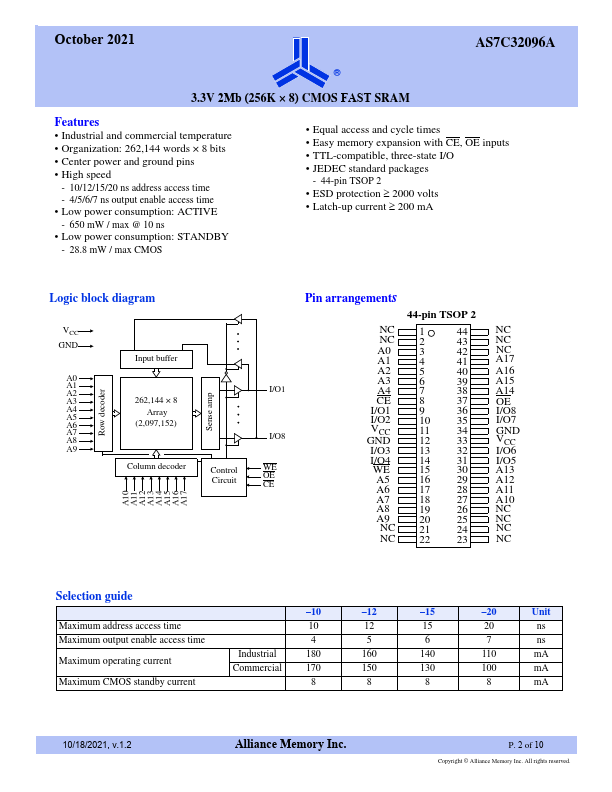

datasheet Preview Page 2 datasheet Preview Page 3
