AM20 Axial Molded Inductors

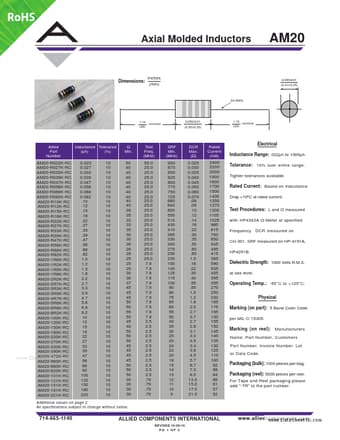

RoHS Axial Molded Inductors AM20 Dimensions: Inches (mm) 0.095±0.01 (2.41±0.25) 24 AWG 1.15 (29) nominal 0.250±0.01 (6.35±0.25) 1.15 nominal (29) Allied Part Number Inductance Tolerance (µh) (%) Q Min. Test Freq. (MHz) SRF Min. (MHz) DCR Max. (Ω) Rated Current (mA) Electrical Inductance Range: .022µh to 1000µh. Tolerance: 10% over entire range. Tighter tolerances available. Rated Current: Based on Inductance Drop <10ºC at rated current. Test Procedures: L and Q measured with HP4.

AM20_AlliedComponentsInternational.pdf

Preview of AM20 PDF
AM20 Datasheet Preview Page 2

Datasheet Details

Part number:

AM20

Manufacturer:

Allied Components International

File Size:

536.04 KB

Description:

Axial molded inductors.
