AM200N10-05B

N-Channel MOSFET

AM200N10-05B Features

* Low rDS(on) trench technology

* Low thermal impedance

* Fast switching speed Typical Applications:

* LED Inverter Circuits

* DC/DC Conversion Circuits

* Motor drives AM200N10-05B VDS (V) 100 PRODUCT SUMMARY rDS(on) (mΩ) 5.5 @ VGS = 10V 7 @ VGS =

AM200N10-05B Datasheet (377.86 KB)

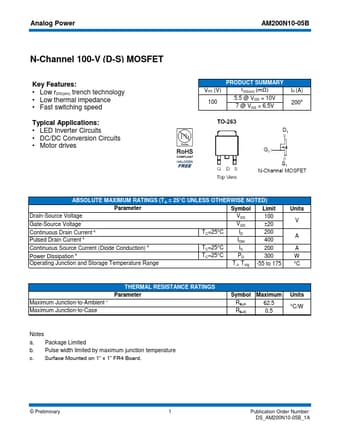

Preview of AM200N10-05B PDF

Datasheet Details

Part number:

AM200N10-05B

Manufacturer:

Analog Power

File Size:

377.86 KB

Description:

N-channel mosfet.
