AM2009C - 6-Channel MOS Multiplex Switches

Product Overview

National Semiconductor

Datasheet Details

Part number	AM2009C
Manufacturer	National Semiconductor
File Size	49.01 KB
Description	6-Channel MOS Multiplex Switches
Datasheet	AM2009C Datasheet
Note	This datasheet PDF includes multiple part numbers: AM2009C, AM2009. Please refer to the document for exact specifications by model.

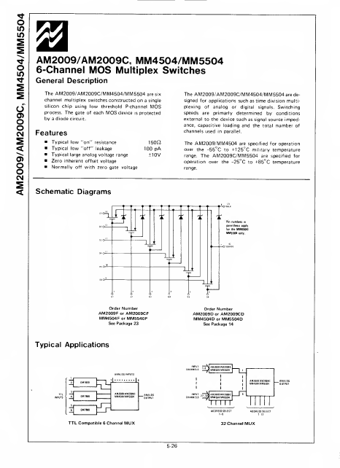

Additional preview pages of the AM2009C datasheet.

Product details

Description

The AM2009/AM2009C/MM4504/MM5504 are six channel multiplex switches constructed on a single silicon chip using low threshold P-channel MOS process.The gate of each MOS device is protected by a diode circuit.

Features

Typical low "on" resistance Typical low "off" leakage Typical large analog voltage range Zero inherent offset voltage Normally off with zero gate voltage 150S2 100 pA ±10V The AM2009/AM2009C/MM4504/MM5504 are de- signed for.
