ASP-LDM-0980-002W-x4, ASP-LDM-0980-300m-x2 Datasheet - Allied Scientific Pro

ASP-LDM-0980-002W-x4 High-Power Laser Diode

The 980nm series high power laser diodes with optimized QW structure have a high reliability, high performance. It has several structures of emitter width. The 980nm series high power laser diodes can get 0.3W 、0.5W、1.0W 、and 2.0W at RT and CW condition. These products can be applied to solid-sta.

ASP-LDM-0980-002W-x4 Features

* Applications

* 50mW、300mW、500mW、1.0W、2.0W、3.0W CW Output Power

* Typical 980nm emission wavelength

* Variety of emitter width: 50µm, 100µm, 200µm

* Optimized QW Structure

* Package: C-mount & TO Mount

* Solid-state Laser Pumping

* Medical Usage

* Target Designator

ASP-LDM-0980-300m-x2-AlliedScientificPro.pdf

This datasheet PDF includes multiple part numbers: ASP-LDM-0980-002W-x4, ASP-LDM-0980-300m-x2. Please refer to the document for exact specifications by model.

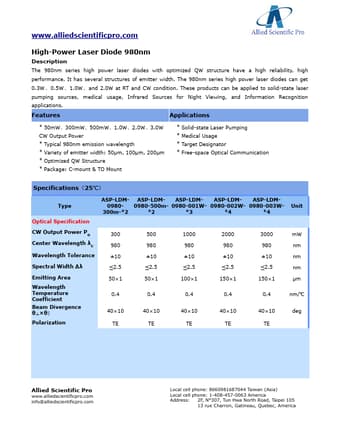

ASP-LDM-0980-002W-x4 Datasheet Preview Page 2 ASP-LDM-0980-002W-x4 Datasheet Preview Page 3

Datasheet Details

Part number:

ASP-LDM-0980-002W-x4, ASP-LDM-0980-300m-x2

Manufacturer:

Allied Scientific Pro

File Size:

168.28 KB

Description:

High-power laser diode.

Note:

This datasheet PDF includes multiple part numbers: ASP-LDM-0980-002W-x4, ASP-LDM-0980-300m-x2.
Please refer to the document for exact specifications by model.
