ASP-134488-01

.050 PITCH TERMINAL ARRAY ASSEMBLY

ASP-134488-01 General Description

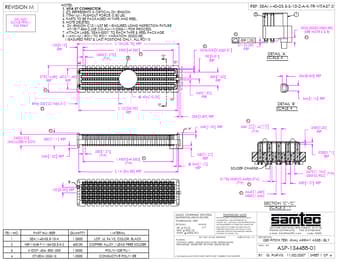

DWG. NO. PLATING: CONTACT AREA: .000030 GOLD OVER .000050 NICKEL REMAINDER: .000200 REF TIN OVER .000050 NICKEL DO NOT SCALE DRAWING SHEET SCALE: 1.5:1 .050 PITCH TERMINAL ARRAY ASSEMBLY ASP-134488-01 11/02/2007 SHEET 1 OF 4 Free Datasheet http://www.datasheet-pdf.com/ c:enterprisevaultDWGMIS.

ASP-134488-01 Datasheet (921.69 KB)

Preview of ASP-134488-01 PDF

Datasheet Details

Part number:

ASP-134488-01

Manufacturer:

Samtec

File Size:

921.69 KB

Description:

.050 pitch terminal array assembly.
REVISION M DO NOT SCALE FROM THIS PRINT NOTES: 1. VITA 57 CONNECTOR. 2. C REPRESENTS A CRITICAL DIMENSION. 3. MINIMUM PUSHOUT FORCE: 0.50 LBS. 4. PAR.
