ASP-134486-01

.050 PITCH SOCKET ARRAY ASSEMBLY

ASP-134486-01 General Description

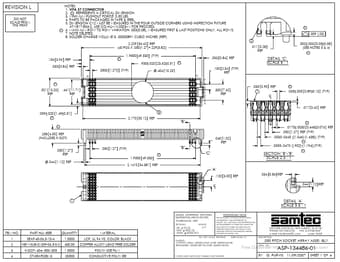

DWG. NO. DO NOT SCALE DRAWING SHEET SCALE: 3:1 PLATING: CONTACT AREA: .000030 GOLD OVER .000050 NICKEL REMAINDER: .000200 REF TIN OVER .000050 NICKEL .050 PITCH SOCKET ARRAY ASSEMBLY Free Datasheet http://www.datasheet4u.com/ ASP-134486-01 BY: G. PURVIS F:DWGMISCMKTGASP-134486-01-MKT.SLDDRW .

ASP-134486-01 Datasheet (430.89 KB)

Preview of ASP-134486-01 PDF

Datasheet Details

Part number:

ASP-134486-01

Manufacturer:

Samtec

File Size:

430.89 KB

Description:

.050 pitch socket array assembly.
REVISION L DO NOT SCALE FROM THIS PRINT C NOTES: 1. VITA 57 CONNECTOR. 2. C REPRESENTS A CRITICAL DIMENSION. 3. MINIMUM PUSHOUT FORCE: 0.50 LBS. 4. P.
