ASP-LDM-0980-003W-x4

High-Power Laser Diode

ASP-LDM-0980-003W-x4 Features

* Applications

* 50mW、300mW、500mW、1.0W、2.0W、3.0W CW Output Power

* Typical 980nm emission wavelength

* Variety of emitter width: 50µm, 100µm, 200µm

* Optimized QW Structure

* Package: C-mount & TO Mount

* Solid-state Laser Pumping

* Medical Usage

* Target Designator

ASP-LDM-0980-003W-x4 General Description

The 980nm series high power laser diodes with optimized QW structure have a high reliability, high performance. It has several structures of emitter width. The 980nm series high power laser diodes can get 0.3W 、0.5W、1.0W 、and 2.0W at RT and CW condition. These products can be applied to solid-sta.

ASP-LDM-0980-003W-x4 Datasheet (168.28 KB)

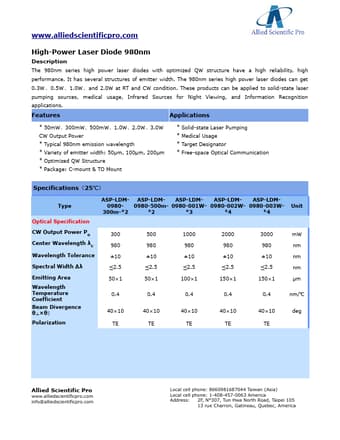

Preview of ASP-LDM-0980-003W-x4 PDF

Datasheet Details

Part number:

ASP-LDM-0980-003W-x4

Manufacturer:

Allied Scientific Pro

File Size:

168.28 KB

Description:

High-power laser diode.
