AOE6930

30V Dual Asymmetric N-Channel FET

AOE6930 General Description



* Bottom Source Technology

* Very Low RDS(ON)

* Low Gate Charge

* High Current Capability

* RoHS 2.0 and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) Q1 Q2 30V 30V 22A 85A < 4.3mΩ < 0.83mΩ < 7.0mΩ.

AOE6930 Datasheet (556.21 KB)

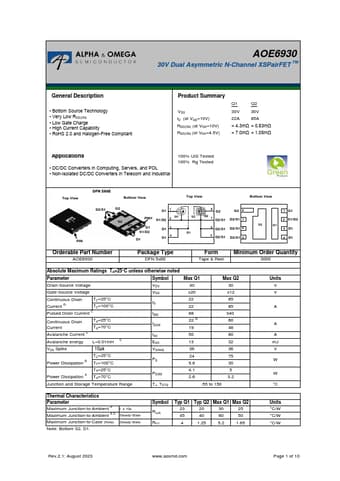

Preview of AOE6930 PDF

Datasheet Details

Part number:

AOE6930

Manufacturer:

Alpha & Omega Semiconductors

File Size:

556.21 KB

Description:

30v dual asymmetric n-channel fet.
