AOE6936

30V Dual Asymmetric N-Channel MOSFET

AOE6936 General Description



* Bottom Source Technology

* Very Low RDS(ON)

* Low Gate Charge

* High Current Capability

* RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) Q1 30V 55A < 5mΩ < 8mΩ Q2 30V 85A < 2mΩ < 3mΩ Applica.

AOE6936 Datasheet (485.66 KB)

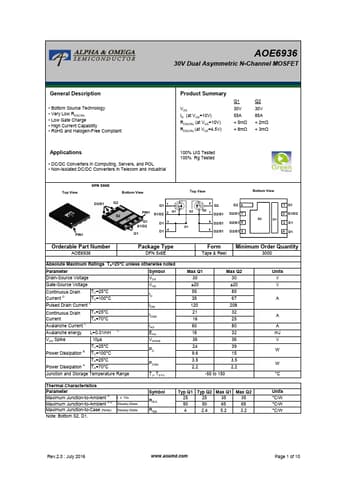

Preview of AOE6936 PDF

Datasheet Details

Part number:

AOE6936

Manufacturer:

Alpha & Omega Semiconductors

File Size:

485.66 KB

Description:

30v dual asymmetric n-channel mosfet.
