AONS30302 - 30V N-Channel Transistor

📥 Download Datasheet

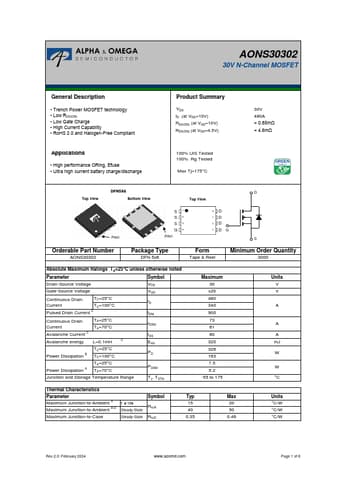

Preview of AONS30302 PDF
datasheet Preview Page 2 datasheet Preview Page 3

AONS30302 Product details

Description

Trench Power MOSFET technology Low RDS(ON) Low Gate Charge High Current Capability RoHS 2.0 and Halogen-Free Compliant Applications High performance ORing, Efuse Ultra high current battery charge/discharge Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 100% UIS Tested 100% Rg Tested Max Tj=175°C 30V 480A < 0.85mΩ < 4.6mΩ DFN5X6 D Top View Bottom View Top View PIN1 S1 S2 S3 G4 PIN1 8D 7
